Key features
3 years warranty
Chinese High Technology.
Turnkey solution.
Spare parts always included.
UHD Line
Ledwalls designed for spectacular images thanks to a minimum pixel pitch.
Mounting system
SMD (Surface Mount Device)
Brightness
500-800 nit
Pixel pitch
1.2mm, 1.5mm, 1.8mm, 2.5mm
Maintenance
Magnetic system
Panel size
640*480mm, 500*500mm
Refresh rate
3840 Hz
UHD-C Line
I ledwall con tecnologia Chip-on-Board pensati per immagini spettacolari grazie un pixel pitch minimo.
Mounting system
COB (Chip On Board)
Brightness
600 nit
Refresh rate
3840 Hz, 7680 Hz
Pixel pitch
0.6mm, 0.8mm, 0.9mm, 1.2mm, 1.5mm
Panel size
600*338mm
Ultra Slim Line
Ultra-thin ledwalls. The potential of LED technology in just 20 mm thickness.
Mounting system
SMD (Glue opzionale)
Thickness
20mm
Pixel pitch
1.9mm, 2.6mm, 2.9mm, 3.9mm
Panel size
250*1000*20 mm, 250*750*20 mm,
250*500*20 mm
Brightness
600-3000 nit
Refresh rate
3840 Hz
High Brightness Line
The ledwall line with brightness up to 5000 nits for constant visibility.
Mounting system
SMD (Surface Mount Device)
Brightness
5000 nit
Refresh rate
3840 Hz
Pixel pitch
2mm, 2.5mm, 3.5mm
Panel size
500*500mm, 640*360mm

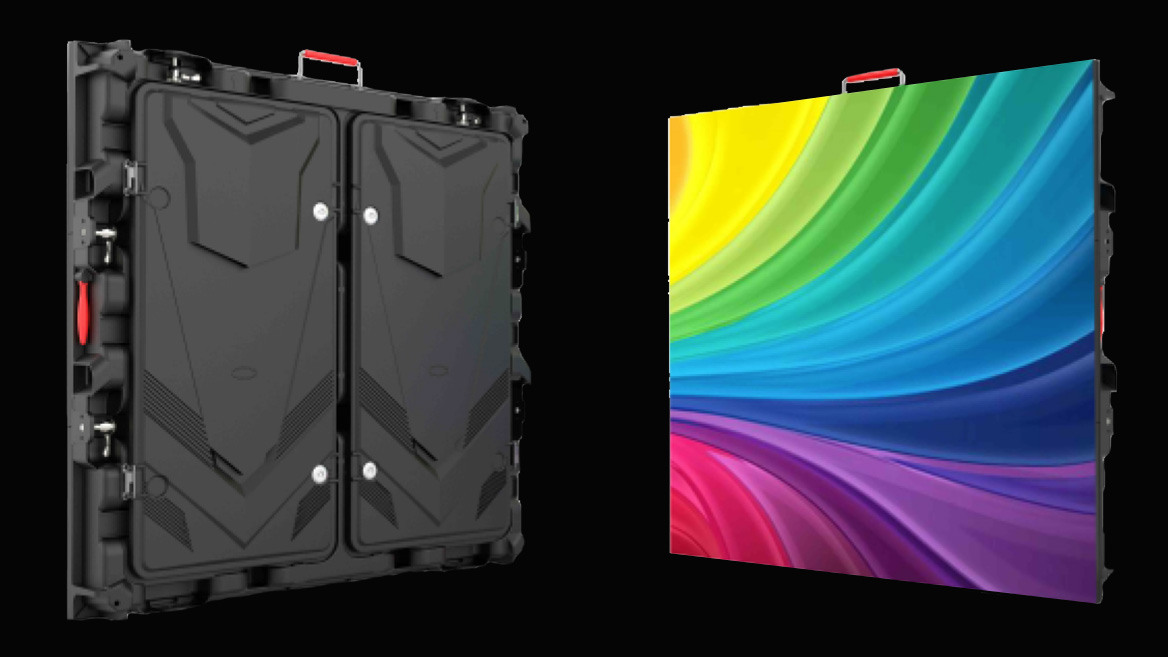

Outdoor Line
I ledwall con struttura in alluminio, luminosità fino a 7000 nit e certificati IP65 per installazioni all'esterno..
Mounting system
SMD (Surface Mount Device)
Brightness
4500-7000 nit
Pixel pitch
2.9mm, 3.9mm, 4.4mm, 6.2mm, 8mm
Panel size
960*960*87mm, 1000*1000*75mm
Refresh rate
3840 Hz
Totem Line
LED totems, transportable and combinable.
Mounting system
SMD (GOB opzionale)
Brightness
600 nit
Refresh rate
3840 Hz
Pixel pitch
1.5mm, 1.9mm, 2.5mm
Size
640*1920mm
Flex Line
Flexible LED wall panels to give your communication the shape you want.
Mounting system
SMD (GOB opzionale)
Brightness
600-800 nit
Refresh rate
3840 Hz
Pixel pitch
1.5mm, 1.8mm, 2.5mm
Panel size
320*160mm

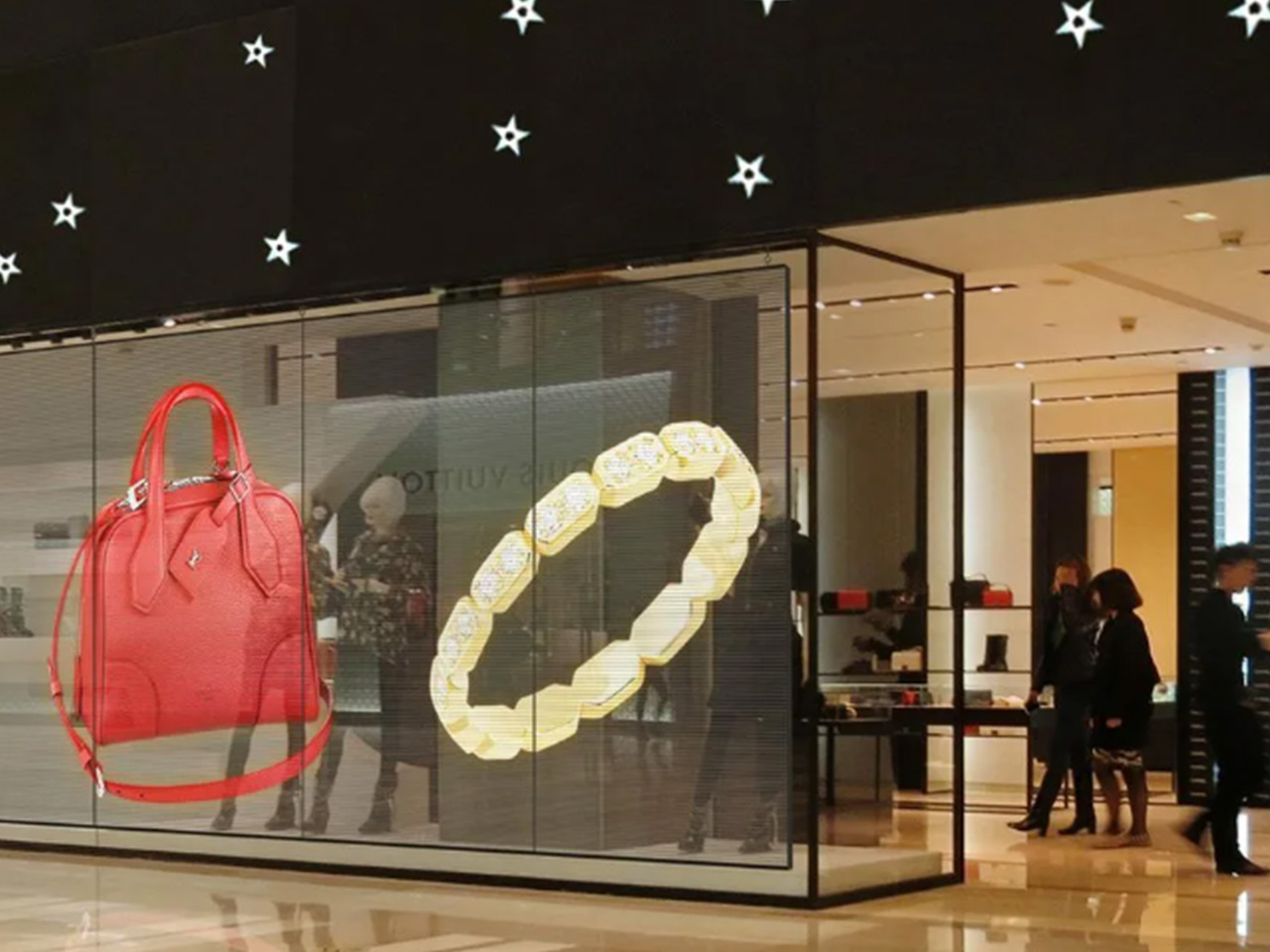

Transparent Line
Transparent LED walls for high-impact installations, fully customisable.
Mounting system
SMD (Surface Mount Device)
Brightness
1000-5500 nit
Refresh rate
1920 Hz
Pixel pitch
2.5*7.8mm, 3.9*7.8mm, 5*8mm, 10.4*10.4mm, 16*16mm
Panel size
1000*500mm, 1000*500mm, 960*640mm, 1000*500mm, 960*640mm
